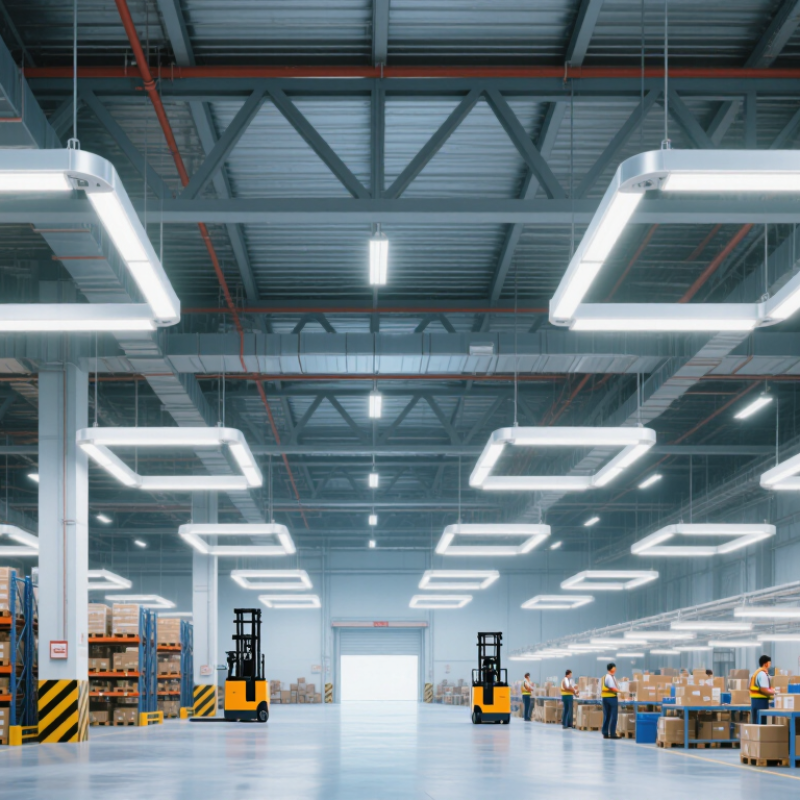

How to Choose LED High Bay Fixtures for Your Warehouse?
Choosing led high bay fixtures for a warehouse involves more than matching wattage to ceiling height. The right fixture should deliver useful light across storage racks, loading zones, and work areas without creating harsh glare or dark patches. It is easy to compare products by wattage alone. That can mislead. A fixture’s lumen output, beam angle, mounting height, and light distribution all affect what workers actually see. For example, a narrow aisle with tall shelving may need a different distribution pattern than an open packing area. Small details matter.
Before comparing models, note the ceiling height, aisle width, existing mounting points, and typical tasks performed below each fixture. Then review photometric data, color temperature, color rendering, dimming options, and rated operating conditions. These specifications help you judge whether the light will suit the space, not just look impressive on a product page. Energy use and maintenance also deserve attention, especially where lifts or stored goods make access difficult. Numbers help, but they do not explain every real-world condition. Dust, unusual layouts, and changing stock can affect results. A careful plan may still need adjustment after installation. This guide explores the practical factors behind choosing warehouse lighting, so you can compare fixtures more confidently and identify questions worth asking before purchase.
Assess Warehouse Lighting Needs and Work Activities
Before selecting LED high bay fixtures, map how the warehouse is actually used. Note ceiling height, aisle width, rack tops, and areas blocked by beams or stored goods. Walk the floor during a normal shift, not only when it is empty. Light levels that look even on a drawing can leave dark bands between tall shelves.
Match the assessment to the work. Picking small labels needs clear light on rack faces; pallet movement needs visible aisle edges and floor hazards. Packing benches and quality checks may require brighter, more consistent light and good color rendering. At loading doors, compare daylight with evening conditions. Watch for glare in drivers’ sightlines and shadows cast by forklifts. Details matter.
Use a light meter at work height and on shelving, recording readings across representative aisles. Compare results with applicable workplace guidance and task requirements; one average reading can hide weak spots. Check existing fixtures, maintenance records, and planned racking changes before sizing output. A mock-up in one aisle can reveal glare or uneven coverage. It is not a perfect test, but it often catches assumptions early.
Measure Ceiling Height, Aisle Layout, and Mounting Conditions
Measure from the finished floor to the ceiling, then note rack height and the actual mounting point.
A 12-meter ceiling needs different optics and output from a 7-meter ceiling. Record aisle width, rack spacing, and any beams, sprinklers, or conveyors that could block light. A quick sketch helps. It will not be perfect.
Match the fixture’s photometric distribution to the aisle: narrow aisle optics can direct more light onto rack faces and floor, while open storage may suit broader distributions. Ask for a photometric layout showing maintained illuminance and uniformity, not just initial lumens. The IES RP-7-21 industrial-lighting guidance bases recommendations on visual tasks and conditions, so picking areas may need more light than bulk storage. Check the mounting surface, too; vibration, dust, and limited access can affect fixture selection and maintenance.
The U.S. Department of Energy’s Energy Saver guidance says LEDs use at least 75% less energy than incandescent lighting. That comparison is not a savings estimate for replacing existing warehouse high bays. Record current fixture wattage and operating hours before estimating payback.
I would recheck the aisle measurements after racks are installed; plans often miss real obstructions.
Compare Fixture Output, Efficiency, and Light Distribution
Choosing LED high bay fixtures starts with the work happening below them. Compare delivered lumens, not wattage alone. A fixture’s lumen output indicates how much light it produces, but not how much reaches the floor or shelves. Check the recommended mounting height and review photometric data for that specific installation. Numbers need context. A bright fixture can still leave dark gaps between tall racks.
Efficiency, measured in lumens per watt, helps compare energy use at similar output levels. For example, a 30,000-lumen fixture using fewer watts may reduce operating costs across a large warehouse. Still, efficiency should not be the only deciding factor. Consider expected operating hours, dimming compatibility, and whether the space needs consistent light during quieter shifts. It is tempting to choose the highest rating, but actual savings depend on how the fixtures are used.
Light distribution matters just as much. Narrow optics can direct light into high-bay aisles, while wider distributions may suit open floor areas. Look at spacing plans and uniformity, not just average foot-candles; bright pools and deep shadows can make labels harder to read. A photometric layout can help predict these conditions before installation. Test one aisle. Measure light at floor level and on shelving, then adjust spacing or distribution if the results feel uneven. That extra check may seem fussy, but warehouse layouts rarely match a perfect diagram.
Check Environmental Ratings, Controls, and Compatibility
A warehouse fixture must suit more than the ceiling height. Dust from pallets, moisture near loading doors, and temperature swings can affect performance. Check the fixture’s IP rating and confirm it matches the actual exposure in each area. An IP rating describes protection against solids and water, but it does not cover every operating condition. Review the manufacturer’s temperature range, too.
Controls need to work with the fixture’s driver. Confirm dimming methods, such as 0–10 V, and check whether occupancy or daylight sensors are compatible. In tall aisles, sensor placement matters: racks can block detection, leaving a fixture slow to respond. Test a small zone before specifying controls across the whole building. Small details matter.
Compatibility can be easy to overlook. Compare input voltage, mounting method, fixture dimensions, and existing wiring before ordering replacements. If emergency lighting or a building control system is involved, verify that the new fixtures can integrate with it. A product may appear suitable on paper, yet fail to fit the existing layout. Recheck the datasheet against site conditions; assumptions made from a product photo are rarely enough.
Plan Fixture Placement and Verify Lighting Coverage
Start with a scaled floor plan showing ceiling height, rack rows, work areas, and loading doors. Mark aisles clearly; their direction affects where light reaches the floor. Choose fixture spacing from the manufacturer’s photometric data, not guesswork. A layout that looks even on paper may leave dark strips between tall racks.
Check the mounting height and beam distribution against the actual warehouse geometry. Narrow aisles may need careful aiming to limit bright spots and glare on glossy packaging. Open storage areas often need a different arrangement. Shadows matter. Include obstructions such as beams, signs, and conveyor equipment in the plan. They can block light in ways a simple room sketch will miss.
Estimate maintained illuminance and uniformity for each task area, using applicable workplace guidance. Then verify the layout after installation with a calibrated light meter at floor level and at key work surfaces. Check aisle edges and corners, too. Compare readings with the design, and adjust spacing or aiming if coverage varies sharply. Even a sound calculation can miss real site conditions; dust, rack changes, and equipment shifts all affect results. Recheck after major layout changes. A small measurement log makes those changes easier to track.
| How to Choose LED High Bay Fixtures for Your Warehouse? — Plan Fixture Placement and Verify Lighting Coverage |
| Warehouse Zone |
Example Area |
Mounting Height |
Suggested Layout |
Approx. Fixture Count |
Typical Center-to-Center Spacing |
Starting Optic |
Maintained Light-Level Target |
Coverage Verification |
| Open pallet storage |
120 ft × 80 ft |
28 ft |
6 × 4 grid |
24 |
About 20 ft × 20 ft |
90° wide distribution |
15–20 foot-candles average |
Check the floor grid and aisle edges for dark areas; confirm minimum-to-average uniformity in a photometric model. |
| Order-picking area |
80 ft × 40 ft |
22 ft |
4 × 2 grid |
8 |
About 20 ft × 20 ft |
90° wide distribution |
30–50 foot-candles average, depending on task detail |
Evaluate light at work surfaces and between shelving; account for racks, stored goods, and task locations. |
| Long storage aisles |
Four aisles, each 100 ft long |
24 ft |
One centered fixture row per aisle |
About 24 (6 per aisle) |
About 18–20 ft along each aisle |
Aisle distribution or narrow beam |
10–20 foot-candles average |
Model the full aisle length and vertical shelf faces; verify that rack height does not block useful light. |
| Receiving and staging |
60 ft × 40 ft |
20 ft |
3 × 2 grid |
6 |
About 20 ft × 20 ft |
90° wide distribution |
20–30 foot-candles average |
Check loading, inspection, and staging points separately, including areas near dock doors. |
| Planning note: Fixture counts and spacing are preliminary layout examples, not guaranteed results. Confirm actual performance using the selected fixture’s photometric file, room dimensions, mounting height, reflectances, obstructions, and light-loss factors. After installation, measure illuminance on a consistent floor or task-area grid and compare readings with the project target. |
